Video Overview

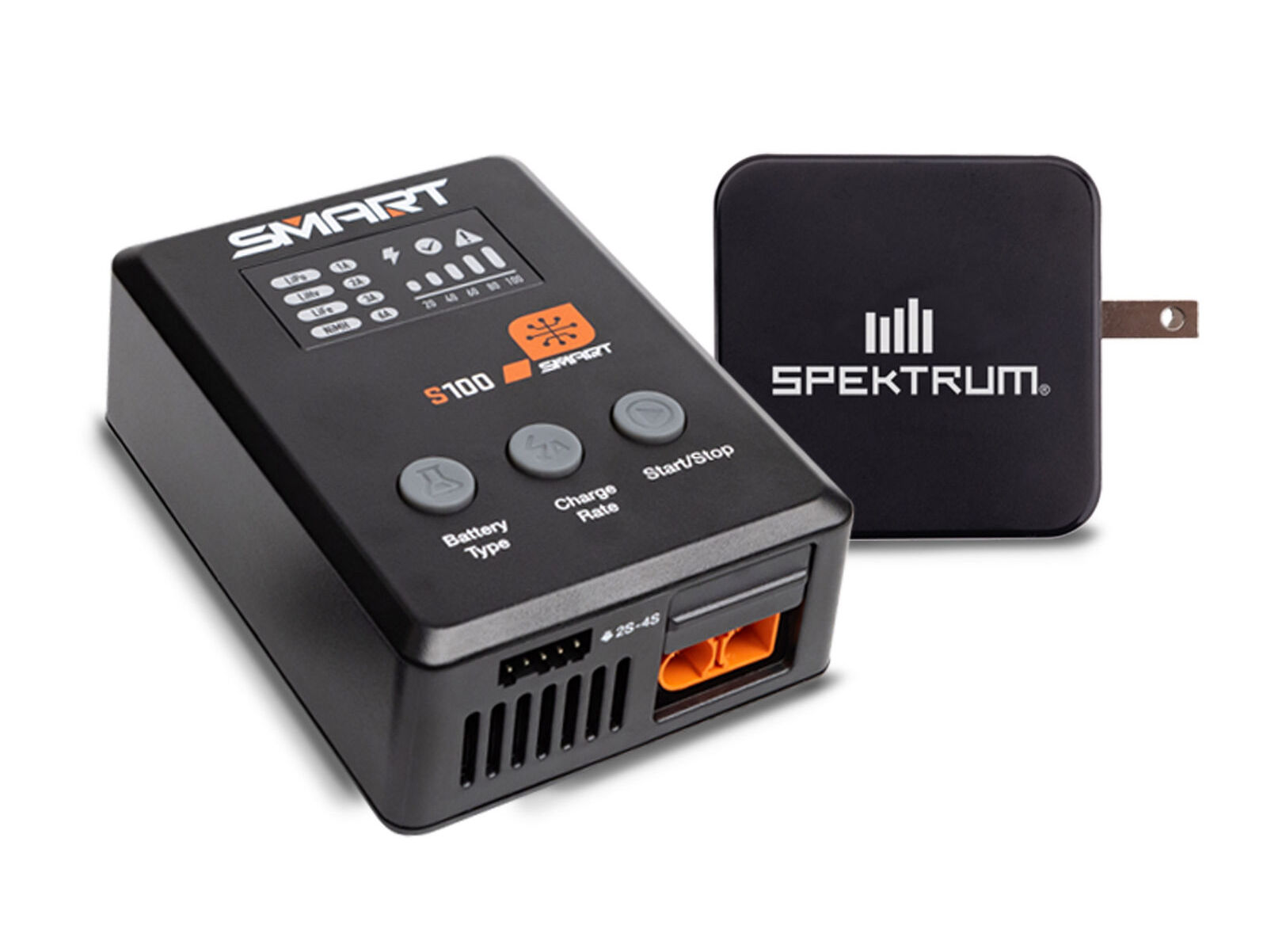

S100 1x100W USB-C Smart Charger, 65W USB-C GaN Power Supply Combo Features

• Gallium Nitride technology: Gallium Nitride (GaN) components waste less power and produce less heat, resulting in higher efficiency operation
• Compact size: A small but powerful design delivers power without the bulk of other power blocks
• Fast power: 65-watt USB power delivery
• Portability: The design includes a foldable plug for travel-friendly portability
• Safety features: Integrated over-voltage, overheating, and short-circuit protection to keep connected devices safe
• Advanced, user-friendly Smart charging technology that fits into any hobby budget
• Meter display shows available wattage on startup, making it easy to know how much power your USB power supply can deliver
• Delivers up to 100W of charging power with appropriately rated power supply and USB-C cable
• Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection – no separate balance
•
• lead needed
• Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
• Smart software tracks and stores numerous smart battery data
• Charges virtually any RC LiPo battery* (use Smart batteries to benefit from all charger features)
• Includes IC3® and IC5® charging output ports – eliminating the need for a separate IC3® or IC5® adapter to charge Spektrum Smart batteries
• Charges up to 4S LiPo/LiFe/LiHV batteries
• Includes an efficient, low-noise cooling fan
• Sleek, sturdy case fits well on a workbench and in pit or field bags
• IC3® and IC5® connectors are backward compatible with EC3™ and EC5™ connectors

SELECT IC3® OR IC5® CHARGING OUTPUT

The S100 Smart USB-C Charger includes IC3® and IC5® output ports for charging your standard Smart batteries without adapters. Use the slider to select either the IC3® or IC5® port and then charge your battery with up to 100W power. You can charge AND balance Smart batteries with one simple IC3® or IC5® connection – no separate balance lead is required.

USB-C INPUT POWER INDICATOR

The S100 Smart Charger can be powered by any conventional USB-C cable and USB power supply. The S100 Smart Charger uses USB-C Power Delivery technology to get the most power out of your USB-C Power Supply. During initial power up, the S100 battery level indicator bars will illuminate, indicating the amount of power available from your USB-C power supply.

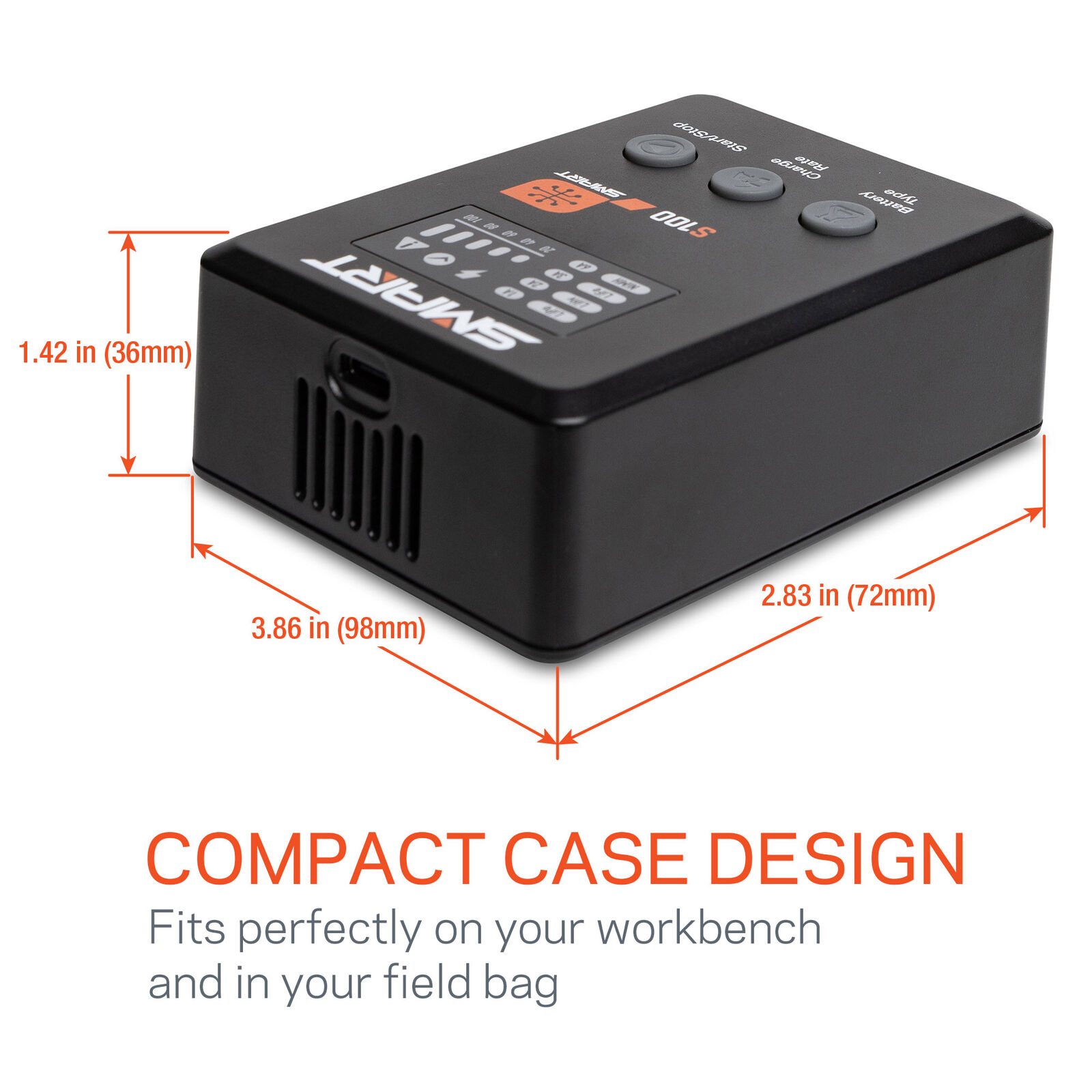

COMPACT CASE DESIGN

The S100 Smart USB-C Charger's sleek case fits perfectly on your workbench and in your pit or field bag. Its power cord is detachable for easy transport. Rubber bottom grips help the charger stay in place as you connect, charge, and disconnect your RC batteries. Update the charger's firmware through the same USB-C power port on the back of the S100 charger.

Spektrum™ 65W Power Supply

The Spektrum™ 65W Power Supply stands out from traditional USB-C converters by delivering higher power in a small size. This compact device, powered by Gallium Nitride electronic components, converts AC input power to USB-type DC output. Its foldable AC input terminals make it easy to store. It's the ideal companion to get the most out of the S100 1x100W USB-C Smart Charger in this package!

S100 1x100W USB-C Smart Charger, 65W USB-C GaN Power Supply Combo Product Specs
