Futaba FP-G153BB - Rate Gyro with Ball Bearing for Aeroplanes & Helis

Product Show

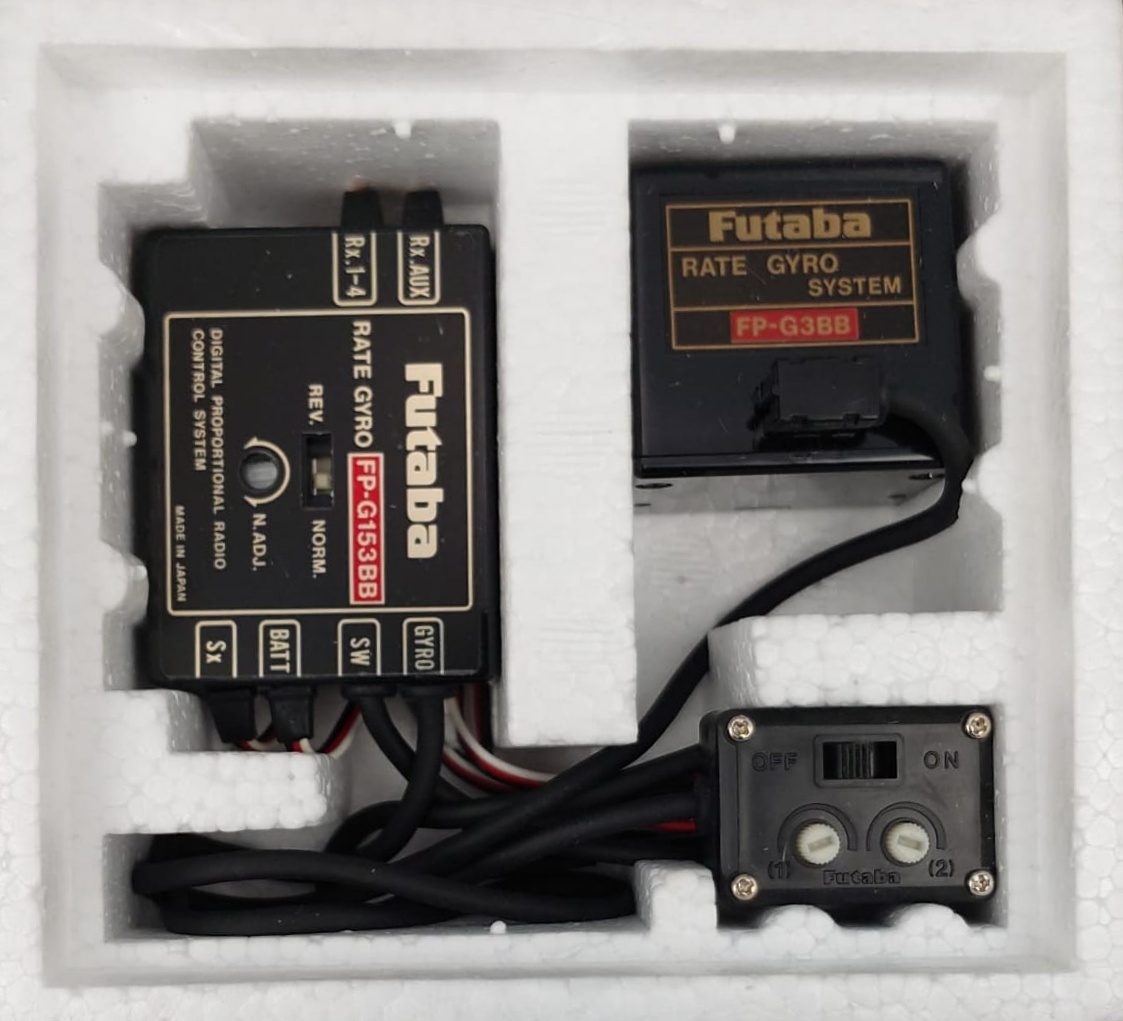

Name: Futaba FP-G153BB - Rate Gyro with Ball Bearing for Aeroplanes & Helis

Price: HK$ 580.00

Buy Item

Device Type: Single-axis mechanical rate gyro / flight stabilization system

Compatibility: Designed for Futaba J, M, and SG Series digital proportional radio control sets (1520 µs neutral pulse)

Motor & Bearing: Features a large 2mm diameter gyro motor shaft with a high-quality ball bearing (BB) for extended life and smooth operation

Power Supply: Equipped with a voltage-regulated gyro motor supply to maintain a constant motor speed and consistent gyro performance

Key Functions:

Direction of correcting mix can be switched.
Channel centering trim adjustable via potentiometer.
Gyro output/sensitivity is switchable to preset outputs (e.g., via a transmitter switch like the retract switch).
Can be bypassed safely by turning the power off.

Power supply voltage	4.8V shared with receiver (6V for external supply)
Current drain	Motor: 100mA, Amplifier: 20mA (at 4.8V)
Dimensions and weight	Gyro body: 1.57 x 1.65 x 1.60 in. (42 x 34 x 39mm)
	Control amplifier: 1.73 x 2.28 x .63 in.(44 x 58 x 16mm) - 1.61 oz.(45g)
	Control box: .94 x 1.34 x .59 in. (24 x 34 x 15mm) -
